Name: Parker Gemini Servo GV-U12ENK-13163 [4260007]
SKU: 4260007
Availability: InStock

Parker Gemini Servo GV-U12ENK-13163 [4260007]

$500.00

Used – Pulled from working unit with signs of regular wear, light scratches to chassis

Model CP*GV-U12ENK-13163 is a “Custom Product” model that features a 1-axis servo drive with features including: a 12-bit command input, support for velocity and torque modes, position mode (Step & Direction/CW & CCW/Encoder Tracking), and up to 3.5kW continuous output power.

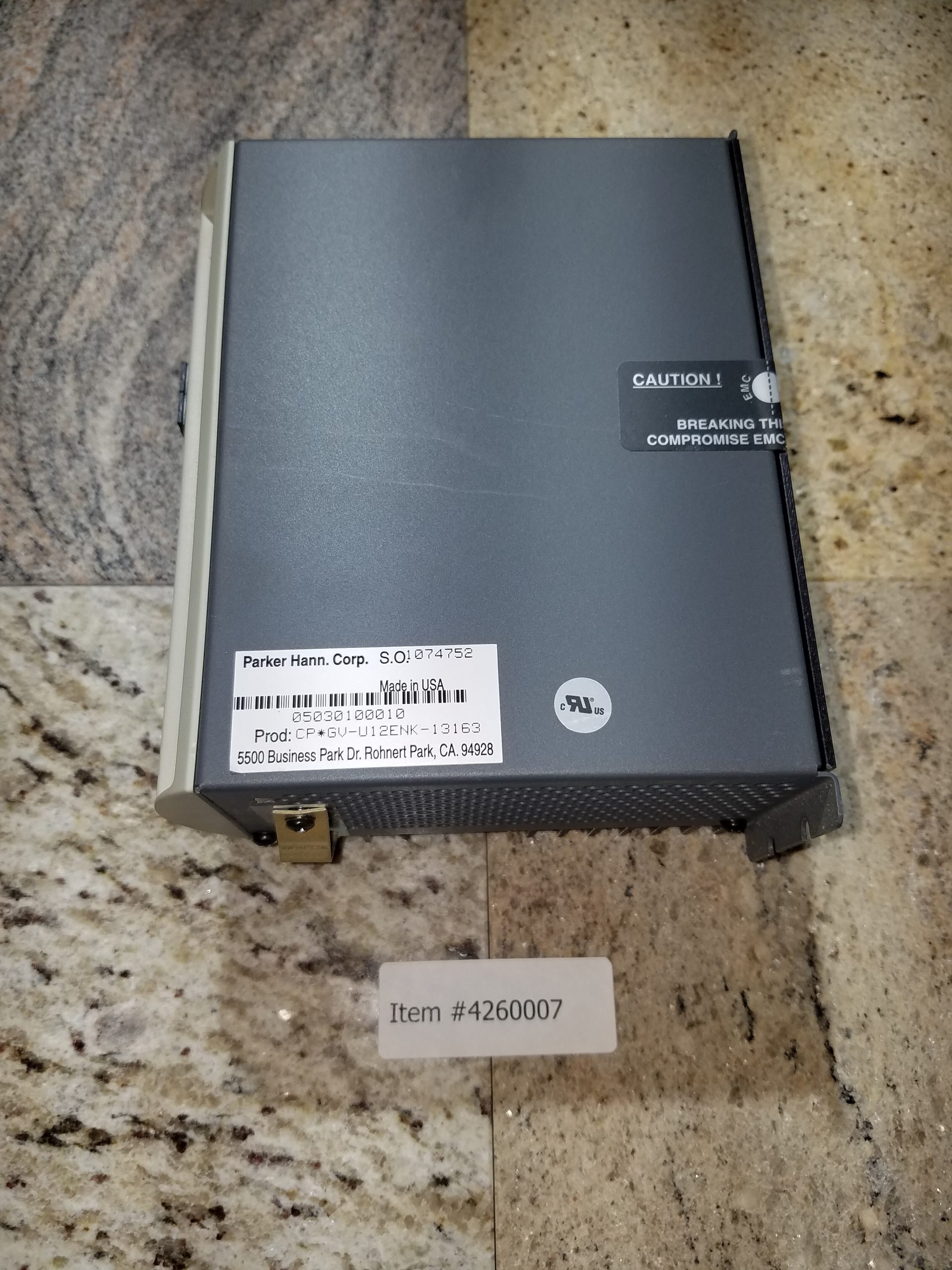

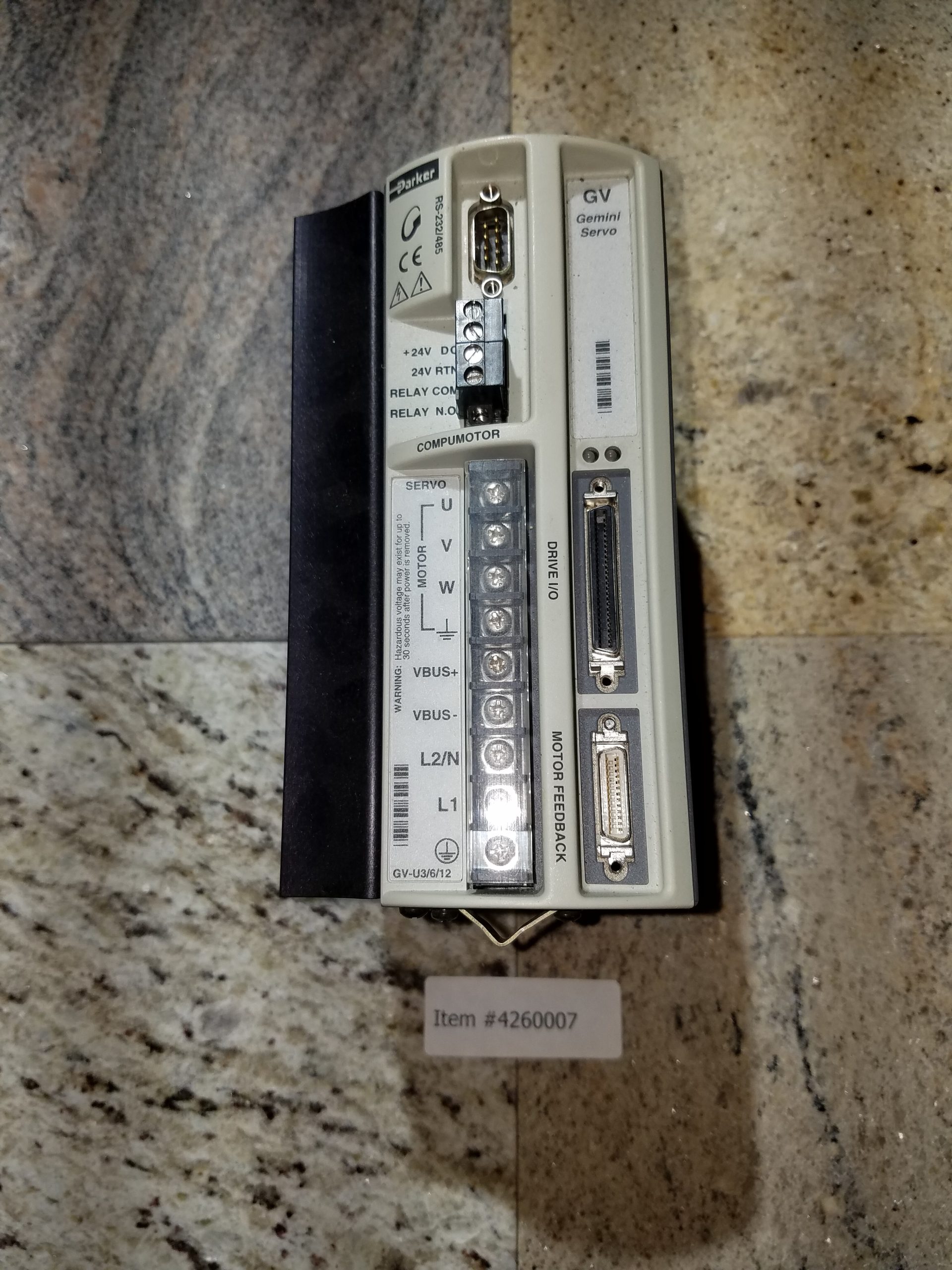

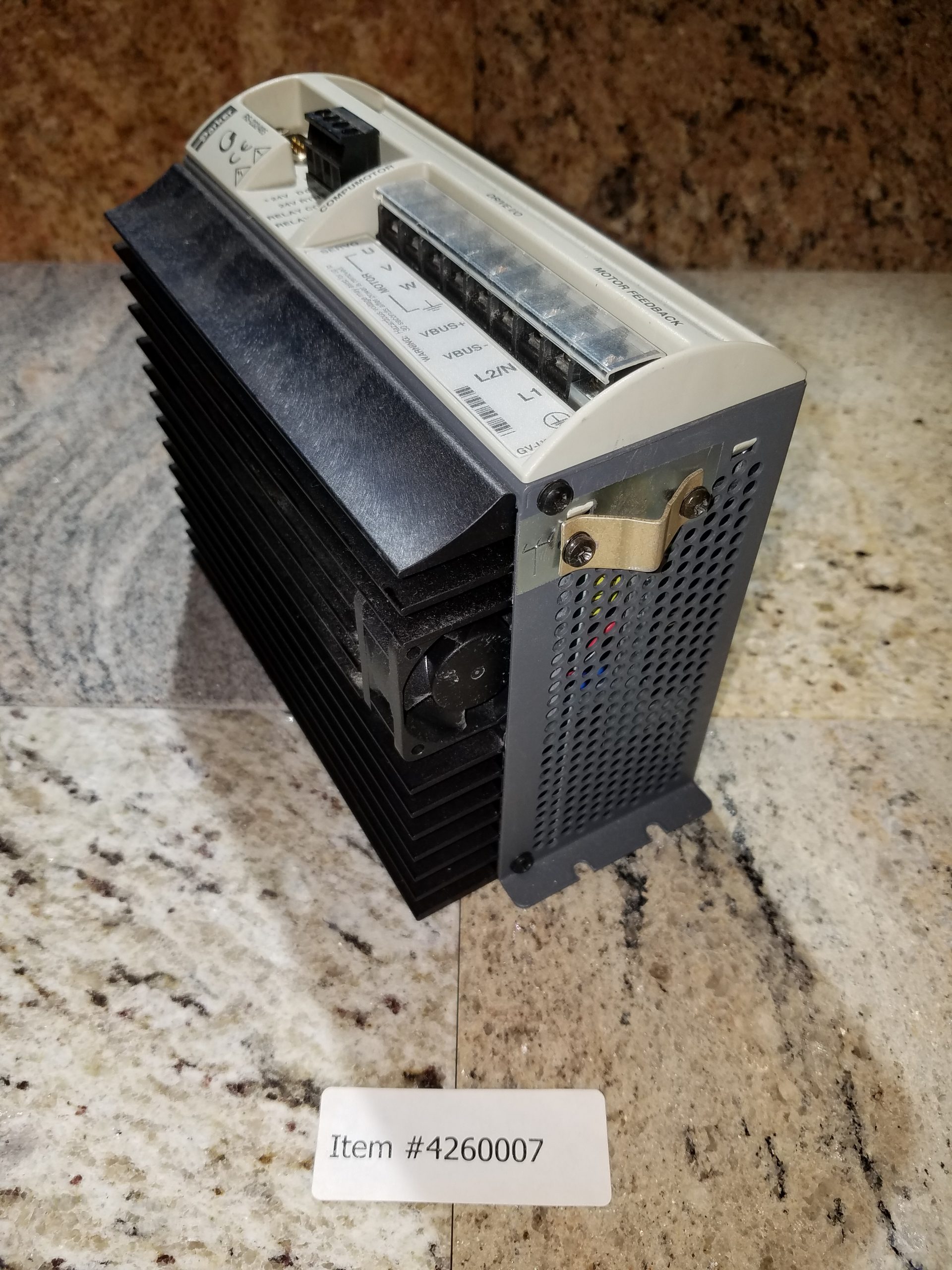

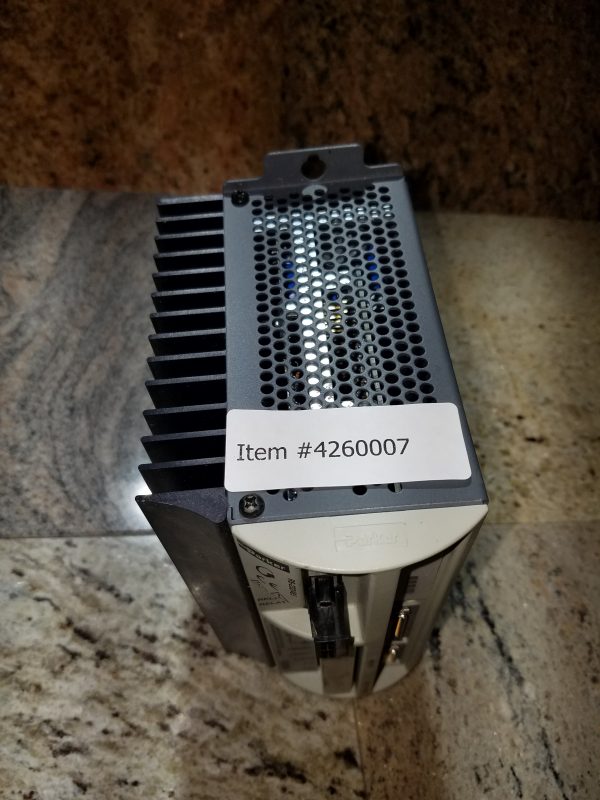

Images are of the actual product you will receive.

1 in stock

SKU: 4260007 Category: Industrial

The Gemini GV Servo is a compact, low-cost, digital servo drive available in six power levels for producing up to 40 Amps continuous and 100 Amps peak current, or up to 29.4 kW of
peak power. The Gemini GV is easily configurable via RS232/485 using Compumotor’s Motion PlannerTM on a PC or Pocket Motion PlannerTM on a Window’s CETM-based palm PC. With
the available power levels, small package size, low cost, and numerous drive features, the Gemini GV will be the obvious choice for all of your low-to-mid power servo drive applications.

Specifications:
